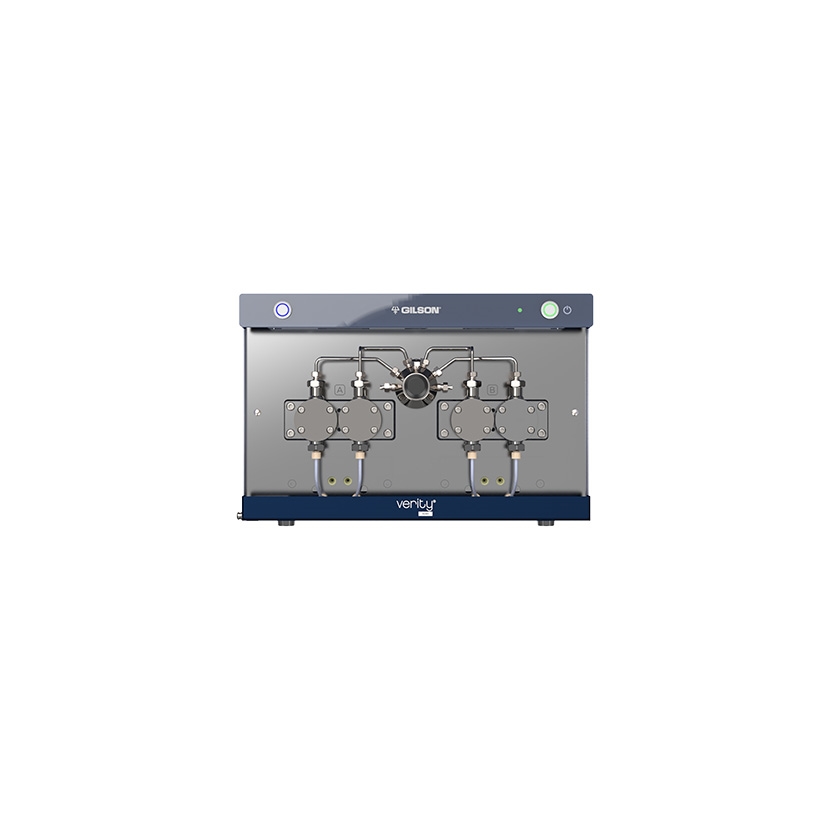

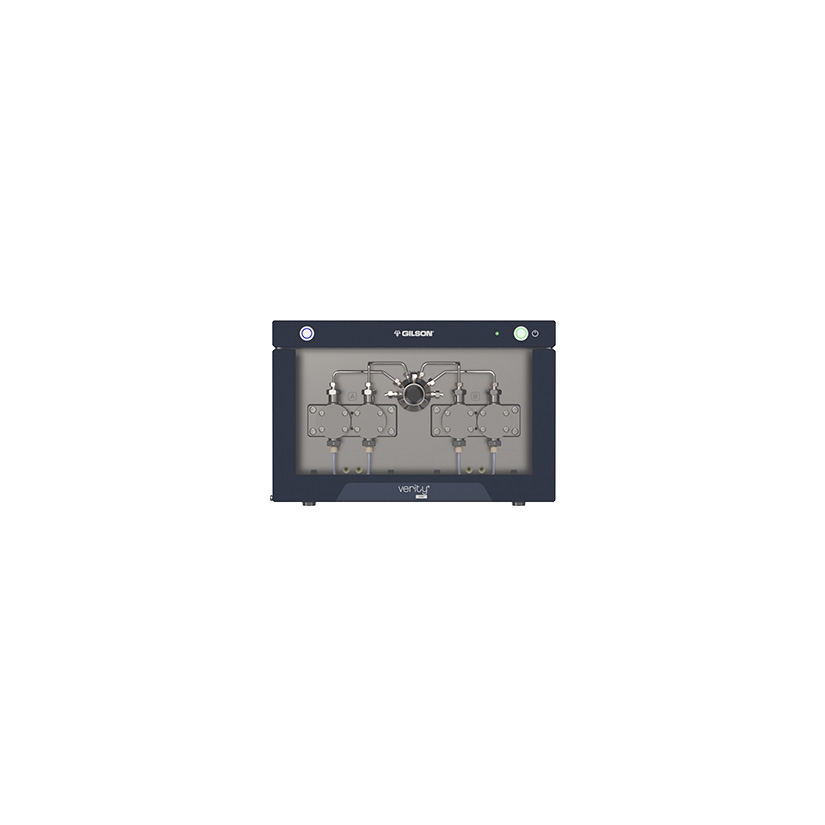

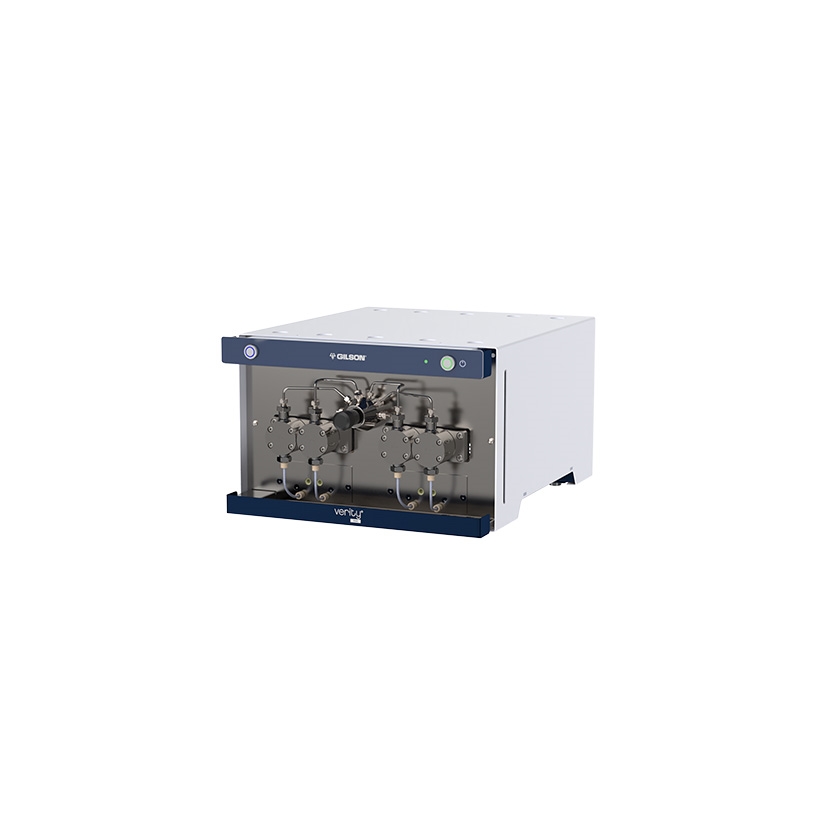

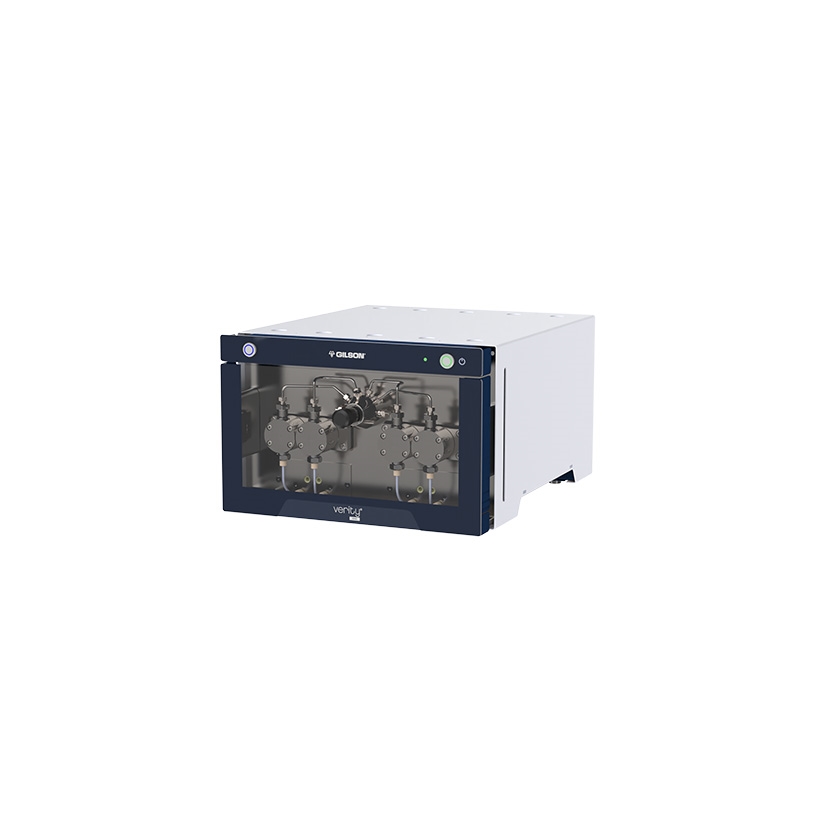

The VERITY® 3240 High Pressure Binary Gradient Pump is designed for semi-preparative to preparative purification. It provides an economical and compact pumping solution for preparative purification on 10 to 50 mm ID columns thanks to its large dynamic flow range up to 150mL/min. and pressure up to 420 bar (6090 psi).
Reliable and Reproducible Purification
The VERITY® 3240 High Pressure Binary Gradient Pump delivers reproducible and precise elution gradient to achieve repetitive isolations of targeted compounds with Gilson automated purification platforms.
Scale-Up Capabilities
VERITY 3240 has been designed to effectively work with preparative HPLC columns from 10 mm to 50 mm ID allowing for scaling up purification from milligrams up to tens of grams on the same Gilson automated purification platform. The large flow rate and pressure range allow the pump - 150 mL to cover most semi-preparative to preparative HPLC purification needs.
Efficient Purification
VERITY 3240 can be equipped with inlet solvent selectors to support high throughput purification on different types of columns and to allow for quick column regeneration.
Specifications
Flow Accuracy ±1% with a minimum pressure of 10 bar
Flow Precision ≤0.3% from 15 to 150 mL/min
Dimensions (L x W x H) 36 x 45.5 x 24 cm (14.2 x 17.7 x 9.4 in.)
Voltage 220–240 V~(Single-Phase, ±10%)
Weight (Metric) 30
Connections USB
Flow Rate Range 0.1–150 mL/min
Range VERITY
Operating Temperature 5°C to 40°C (41°F to 104°F)
Model VERITY 3240
Purification Technique HPLC
Operating System Microsoft® Windows® 10 or 11 Professional (64-bit)
Color White/Blue
Material Liquid contact materials : 316 / 316L / 316 Ti Stainless Steel, PEEK, PFA, PTFE, ETFE, PCTFE, Ketron® CA30 PEEK, FFKM (Kalrez®, Perlast®), Inconel®, Ruby, Sapphire, Zirconium Oxide, GFP
Hydraulic System Reciprocating Dual Piston Pumps
Operating Pressure 5–420 bar (70–6090 psi) up to 110 mL/min | 5–320 bar (70–4640 psi) from 110 to 150 mL/min
Frequency 50 or 60 Hz
For Use With (Applications) HPLC
Software Trilution LC
Length (Imperial) 14.2
Width (Imperial) 17.9
Height (Imperial) 9.4
Depth (Imperial) 1.79
Unit Of Measure - Dimensions mm
Unit Of Measure - Weight kg/lb
Product Weight (Imperial) 66
Packaging Dimensions Plastik palet : (LxWxH) 600x800x135 mm Box : (LxWxH) 600x450x290 mm Overall : (LxWxH) 600x450x425 mm
Stackable No
Disposable Reusable
